Electrode Holder

ENVIROFLEX® Electrode Holder available in three diff. types

Click here for Ground Clamp Catalog

Model Part Number Electrode Position Electrode Diameter Weight Length Material Cable Diameter
600 20.004 45° or 90° max. 6 mm (.23″) 510g (17.99 oz) 250 mm (9.75″) Brass 14 mm (.55″)
450 20.005 45° or 90° max. 5 mm (.20″) 470g (16.58 oz) 250 mm (9.75″) Brass 14 mm (.55″)
200 20.006 45° or 90° max. 4 mm (.16″) 280g (9.88 oz) 200 mm (7.80″) Brass 9 mm (.35″)



SKU: 20.004 (600amp electrode holder) Category:

Description

ENVIROFLEX® Electrode Holder Specifications

Model Part Number Electrode Position Electrode Diameter Weight Length Material Cable Diameter
600 20.004 45° or 90° max. 6 mm (.23″) 510g (17.99 oz) 250 mm (9.75″) Brass 14 mm (.55″)
450 20.005 45° or 90° max. 5 mm (.20″) 470g (16.58 oz) 250 mm (9.75″) Brass 14 mm (.55″)
200 20.006 45° or 90° max. 4 mm (.16″) 280g (9.88 oz) 200 mm (7.80″) Brass 9 mm (.35″)

ENVIROFLEX® Electrode Holders:

  • The working environment for welding operations greatly influences both the operator’s health and productivity.

  • ENVIROFLEX® Electrode Holder incorporates design advantages such as reduced weight and balance, thereby alleviating tension during welding operations.

  • Reduces the possibility of industrial shock hazards that exist in some conventional holders.

  • This top-quality electrode holder has been acclaimed by the International Welding Industry.

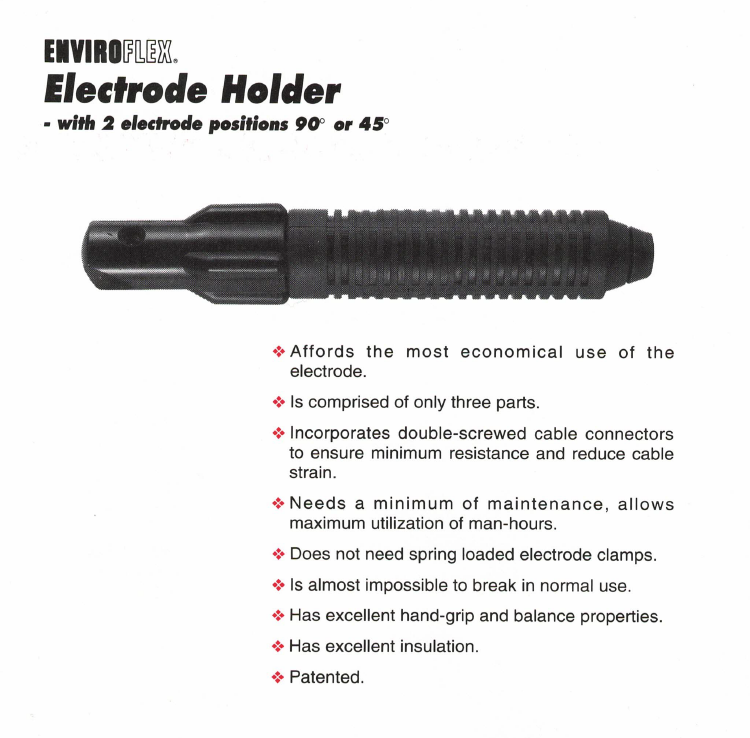

ENVIROFLEX® Electrode Holder
with 2 electrode positions 90° or 45°

  • Affords the most economical use of the electrode.

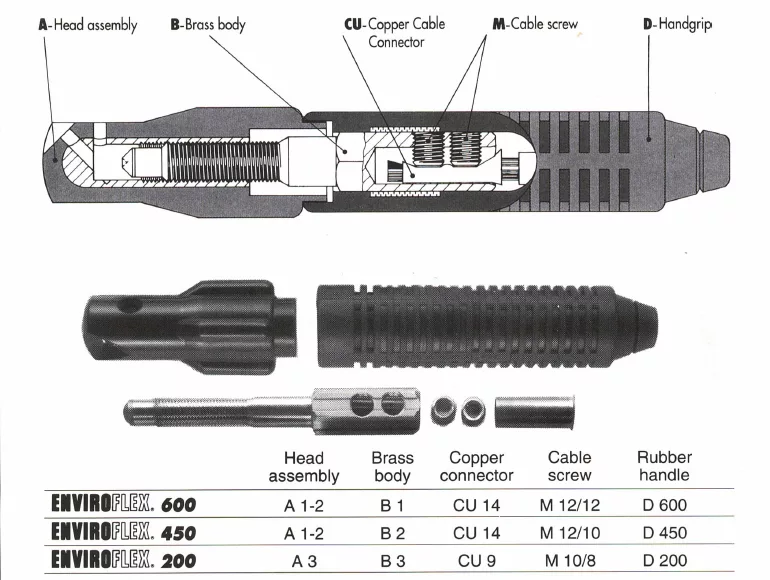

  • Comprised of only three parts.

  • Incorporates double-screwed cable connectors to ensure minimum resistance and reduce cable strain.

  • Needs a minimum of maintenance, allows maximum utilization of man-hours.

  • Does not need spring-loaded electrode clamps.

  • Almost impossible to break in normal use.

  • Excellent handgrip and balance properties.

  • Excellent insulation.

  • Patented.
